Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Joyhonest
  • Model Number: 5808C+5600A
  • Type: Digital Camera
  • Style: Hidden Camera
  • Sensor: CMOS
  • Technology: Pinhole
  • Special Features: Vandal-proof
  • Product name: 5.8ghz wireless fpv camera
  • Video resolution: HD720P 1280x720 pixels AVI
  • Photo resolution: 1920*1080 / 1280*720 pixels JPEG(Option)
  • Frames: 30fps
  • Transmitter power: 13dBm (20mW)
  • Transmitter Working current: 220~230mA when input DC 5.0V
  • 5808C transmitter board size: 18.2mm*42.5mm*0.8mm
  • 5.8Ghz receiver Receiving sensitivity: -85dBm
  • 5.8Ghz 5808C receiver working voltage: DC 5.5V~9V
  • LCD screen size: 4.3 inch

Packaging & Delivery

Packaging Details: inner bubble bag+outer hard carton box
Delivery Detail: within 15~20 working days
Product Overviews

Wireless 5.8Ghz video transmitter& monitor FPV Camera











Product Description



TX(Transmitter) 5.8Ghz wireless camera specification:

Video resolution: HD720P 1280x720 pixels AVI
Photo resolution: 1920*1080 / 1280*720 pixels JPEG(Option)
Frames: 30fps
AV-OUT function: Support
Working voltage:2.5V~5.5V
Working current: ~260mA when input DC 5.0V
Working frequency range:5.705GHz~5.945GHz
Transmitter power:13dBm (20mW)
Support 8 channels, free directly switch them in rc drones remote controller
Connection: 3 pins connector(VCC;GND;DATA) OR 4 pins connector(VCC;GND;DV;DC)
Small size(18.2mm*42mm*0.8mm) with transmitter and video recording together

JH 5600A receiver specification:

1. Working voltage: 3.6V~5.5V
2. Working current:185mA
3. Receiving sensitivity : -85dBm
4. Working frequency: 5.705GHz~5.945GHz

Application :RC Airplane, RC helicopter, RC aerodone, RC boat, RC car, RC toys, Wireless monitoring etc.
FAQ



What capacity memory card can 5.8Ghz wireless camera support?
It is 2GB~32GB Micro SD Card.
How long transmission&reception distance it can support?

Normal 100~200m, MAX 300~400m (it depends on the test environment, open environment will be better)

What is main functions for 4.3 inch LCD display monitor?

Support live video and view the video and pictures in the memory card.
5600A receiver only can support live video.

5601A can support both.

You are a direct manufacturer?
Yes, we are.
If I want to do some customization, you can support it?
Yes, we offer ODM&OEM service, and customized order MOQ is 500 pcs.

MOQ
1. For the first order, there is no limit for the quantity.
2. From the second order, the MOQ is 100pcs.
Payment Terms
T/T, Western Union,Escrow, PayPal
1. T/T Remittance : 40% deposit payment before mass production, balance payment paid before shipment.
2. PayPal :There will be 5% PayPal fee for each individual remittance.
Lead Time
1. Sample order can be delivered out from our factory in 5 working days.
2. General order can be delivered from our factory in 15 - 20 working days.
3. Big order can be delivered from our factory in 20-25 working days at most.





Our Services



1.-The good performance warranty-1 year.

2.- Our professional service before and after sale.

3.-The free new product samples after your first 3 orders(based on our MOQ).

4.-The long-term support for the PCB file drafting, PCB boards production and SMT PCB into PCBA board, assembling,sealant, testing and package etc.

5.-The competitive price and good performance.



Company Information



Our factory brief introduction:

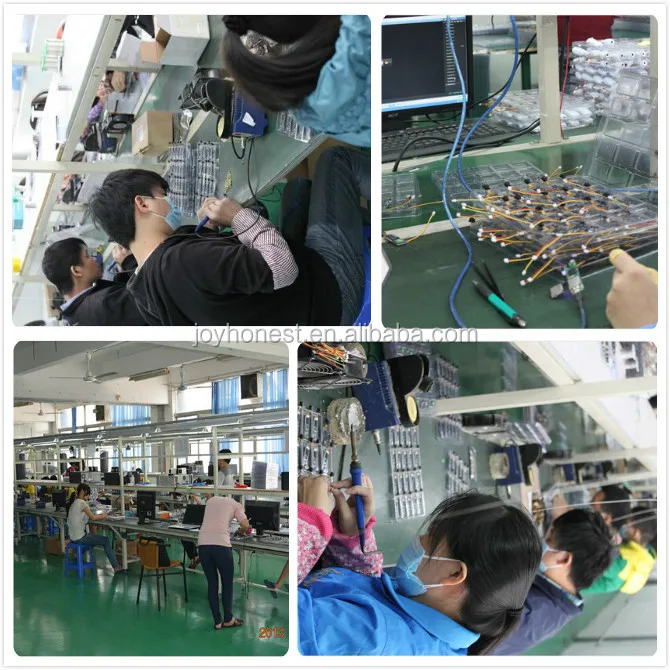

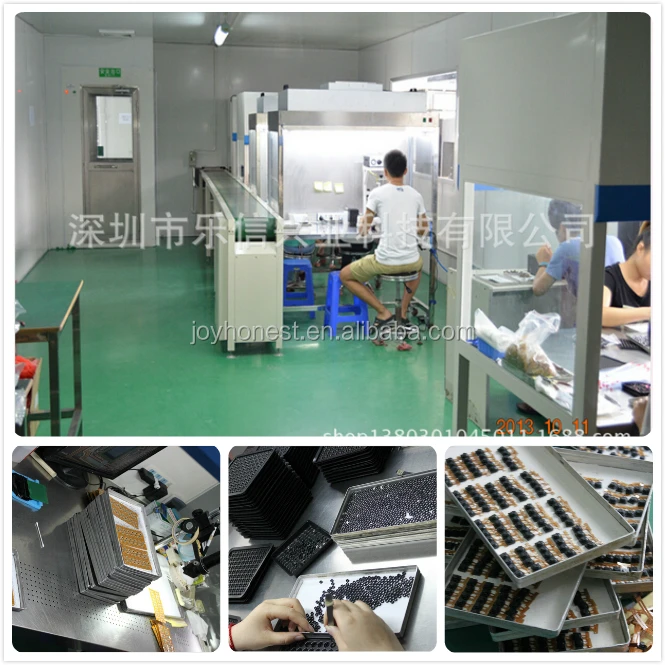

2000 square meter factory, 150 staff, two Production Dept, QC Dept, Maintenance and Test Dept, Engineering Dept for products design etc.
 PCB file drafting, PCB boards production and SMT PCB into PCBA board, assembling,sealant, testing and package etc, which is finished by us.
 Our current production quantity is 500~600k/month ranging from  different resolution VGA 30fps, VGA 60fps, HD 720P 30fps to High speed HD 720P 60fps, FHD 1080P 30fps, 5.8G wireless FPV camera  etc.



Thanks for your attention O(∩_∩)O~
